Point Level Switches

Introducing our high-performance Point Level Switches, designed specifically for traders, suppliers, and distributors in the industrial sector who demand superior accuracy and reliability in level detection applications. With over 2 years of experience, our product lineup includes the remarkable LMFS Frequency Sweep Level Switch, the new release LMC14 Compact Capacitance Level Switch, the top-performing LFV Vibrating Fork Point Level Switch for Liquids, the innovative LSY Admittance Point Level Switch, and the perfect LSV Vibrating Fork Point Level Switch for Solids. These Point Level Switches stand out for their exceptional durability, ensuring minimal maintenance and extended service life, as well as their versatile compatibility with a wide range of process media. They offer remarkable sensitivity and quick response times, guaranteeing precise point level measurement even in challenging conditions. Their perfect reliability minimizes the risk of overflow or dry run, protecting valuable assets. Additionally, the user-friendly installation process and compact designs make them superior choices in comparison to conventional switches on the market. Our robust supply capability covers the entire All India domestic market, making us your preferred source whether you plan to purchase for new setups or upgrade existing systems. Choose our Point Level Switches for unmatched peace of mind and proven excellence in level control technology.

LSV Vibrating Fork Point Level Switch for Solids

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPDT Relay (potential free)
  • Color
  • Metallic Silver (enclosure)
  • Contact Resistance
  • <50 m
  • Current Rating
  • 5A at 230V AC
  • Finish Type
  • Corrosion resistant finish
  • Insulation Resistance
  • >100 M at 500V DC
  • Material
  • SS316 (Wetted Parts), Enclosure Aluminum Die Cast
  • Max. Current
  • 5A
  • Max. Voltage
  • 250V AC / 30V DC
  • Mechanical Life
  • >1 million operations
  • Mounting Type
  • Threaded (1 BSP/NPT)
  • No Of Poles
  • 1 (SPDT Relay)
  • Number of Module
  • Single
  • Operating Temperature
  • -20C to +80C
  • Product Type
  • Vibrating Fork Point Level Switch
  • Protection Level
  • IP66 / IP68 (depending on model)
  • Rated Voltage
  • 230V AC; 24V DC (Relay Output)
  • Response Time
  • <1 second
  • Size
  • Fork length: 120 mm
  • Temperature Range
  • -20C to +80C
  • Weight
  • Approx. 1.2 kg

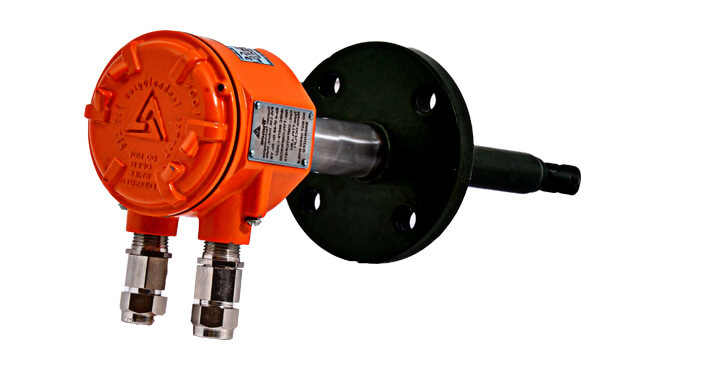

LFV Vibrating Fork Point Level Switch for Liquids

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPDT (Single Pole Double Throw)
  • Color
  • Metallic Silver
  • Contact Resistance
  • 50m
  • Current Rating
  • 400 mA
  • Finish Type
  • Polished Stainless Steel
  • Insulation Resistance
  • 100M (at 500V DC)
  • Material
  • Stainless Steel (SS316 / SS304)
  • Max. Current
  • 400 mA (Switching current)
  • Max. Voltage
  • 250V AC/DC
  • Mechanical Life
  • >10 million cycles
  • Mounting Type
  • Threaded / Flanged
  • No Of Poles
  • Single Pole
  • Number of Module
  • Single Unit
  • Operating Temperature
  • -40C to +150C
  • Product Type
  • Vibrating Fork Point Level Switch for Liquids
  • Protection Level
  • IP66/IP67
  • Rated Voltage
  • 24 V DC / 230 V AC
  • Response Time
  • 1 second
  • Size
  • Fork Length: 40 mm / Process Connection: 1 BSP or NPT
  • Temperature Range
  • -40C to +150C
  • Weight
  • Approx. 1.0 - 1.5 kg

LFV11 Compact Vibrating Fork Point Level Switch for Liquids And Solids

Price 8500 INR/ Piece

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • 2-wire or 3-wire
  • Color
  • Silver with Blue Head
  • Contact Resistance
  • < 100 m
  • Current Rating
  • Max. 250 mA
  • Finish Type
  • Brushed Stainless Steel
  • Insulation Resistance
  • 100 M at 500 VDC
  • Material
  • Stainless Steel (Process Wetted Part), Polycarbonate (Housing)
  • Max. Current
  • 250 mA
  • Max. Voltage
  • 250 VAC/DC
  • Mechanical Life
  • >10 million cycles
  • Mounting Type
  • Threaded (G1/2, other options available)
  • No Of Poles
  • 1
  • Number of Module
  • Single
  • Operating Temperature
  • -40C to +150C
  • Product Type
  • Compact Vibrating Fork Point Level Switch
  • Protection Level
  • IP66/IP67
  • Rated Voltage
  • 19...253 VAC/DC
  • Response Time
  • < 1 s
  • Size
  • Fork length 40 mm, Thread G1/2
  • Temperature Range
  • -40C to +150C
  • Weight
  • Approx. 350 g

LFV12 Compact Tuning Fork Point Level Switch for Liquids

Price 11000 INR/ Piece

MOQ : 10 Pieces

  • Material
  • Stainless Steel
  • Mounting Type
  • Top Mount
  • Product Type
  • Compact Tuning Fork Point Level Switch
  • Rated Voltage
  • 80 V DC

LSY Admittance Point Level Switch

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • Relay Output
  • Color
  • Grey/Metallic
  • Contact Resistance
  • <50 m
  • Current Rating
  • 5A/10A @ 230V AC
  • Finish Type
  • Powder Coated/Polished
  • Insulation Resistance
  • >100 M at 500VDC
  • Material
  • Stainless Steel Probe, Flameproof/Weatherproof Housing
  • Max. Current
  • 10A
  • Max. Voltage
  • 250V AC/DC
  • Mechanical Life
  • >106 operations
  • Mounting Type
  • Threaded/Flanged
  • No Of Poles
  • 1 (SPDT Output)
  • Number of Module
  • Single
  • Operating Temperature
  • -20C to +80C
  • Product Type
  • Admittance Point Level Switch
  • Protection Level
  • IP65/IP67
  • Rated Voltage
  • 220V AC/24V DC
  • Response Time
  • <1 second
  • Size
  • Custom Probe Length (typically 200mm-2000mm)
  • Temperature Range
  • -20C to +80C
  • Weight
  • Approx. 1.2 kg

LMC Capcitance Points Level Switch

Price 15000 INR/ Piece

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPST, Potential-free
  • Color
  • Silver (Probe), Grey (Enclosure)
  • Contact Resistance
  • 50 m
  • Current Rating
  • 10A
  • Finish Type
  • Powder coated, Polished Steel
  • Insulation Resistance
  • 100 M at 500V DC
  • Material
  • Stainless Steel Probe, Polycarbonate Enclosure
  • Max. Current
  • 10A
  • Max. Voltage
  • 250V AC/DC
  • Mechanical Life
  • >10 Million operations
  • Mounting Type
  • Screw/Threaded, Flanged
  • No Of Poles
  • Single pole
  • Number of Module
  • Single
  • Operating Temperature
  • -20C to +80C
  • Product Type
  • Capacitance Points Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 230V AC
  • Response Time
  • <1 second
  • Size
  • Customizable, typically 250mm to 1500mm
  • Temperature Range
  • -20C to +80C
  • Weight
  • Approx. 600g

LWS Conductivity Points Level Switch Conductive Liquids

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPST or SPDT
  • Color
  • Metallic Silver
  • Contact Resistance
  • 50 m
  • Current Rating
  • 5A at 230VAC
  • Finish Type
  • Polished
  • Insulation Resistance
  • >100 M at 500 VDC
  • Material
  • SS304/SS316 with PTFE insulation
  • Max. Current
  • 5A
  • Max. Voltage
  • 250 VAC
  • Mechanical Life
  • >1,000,000 operations
  • Mounting Type
  • Threaded/Flanged
  • No Of Poles
  • 1 to 4 Points
  • Number of Module
  • Single or Multi Point
  • Operating Temperature
  • -10C to +80C
  • Product Type
  • Conductivity Points Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 250 VAC
  • Response Time
  • <0.2 sec
  • Size
  • Customizable (typically 1/2 BSP, 3/4 BSP)
  • Temperature Range
  • -10C to +80C
  • Weight
  • Approx. 250 g

LSR Rotating Paddle Level Switch

Price 10000 INR/ Piece

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPDT (Single Pole Double Throw)
  • Color
  • Silver/Blue
  • Contact Resistance
  • 50m
  • Current Rating
  • 10A
  • Finish Type
  • Powder Coated
  • Insulation Resistance
  • 100M at 500V DC
  • Material
  • Aluminum Alloy (Body), Stainless Steel Paddle
  • Max. Current
  • 10A
  • Max. Voltage
  • 250V AC
  • Mechanical Life
  • More than 1,000,000 operations
  • Mounting Type
  • Side or Top Mount
  • No Of Poles
  • 1
  • Number of Module
  • Single
  • Operating Temperature
  • -10C to +80C
  • Product Type
  • Rotating Paddle Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 250V AC
  • Response Time
  • Less than 1 second
  • Size
  • Process Connection 1 1/2 BSP/NPT
  • Stoke
  • Adjustable Paddle Length
  • Temperature Range
  • -10C to +80C
  • Weight
  • Approx. 1.5 kg

LMFTM Top Mounted Magnetic Level Switch

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPST or SPDT
  • Color
  • Silver
  • Contact Resistance
  • 100 m
  • Current Rating
  • 0.5A
  • Finish Type
  • Polished Stainless Steel
  • Insulation Resistance
  • 100 M at 500V DC
  • Material
  • Stainless Steel (SS 304/316)
  • Max. Current
  • 0.5A
  • Max. Voltage
  • 250V AC/200V DC
  • Mechanical Life
  • > 10^5 operations
  • Mounting Type
  • Top Mounted
  • No Of Poles
  • Single Pole
  • Number of Module
  • Single
  • Operating Temperature
  • -10C to +80C
  • Product Type
  • Top Mounted Magnetic Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 220V AC
  • Response Time
  • 50 ms
  • Size
  • Customizable, typical flange size 2
  • Stoke
  • 10 mm
  • Temperature Range
  • -10C to +80C
  • Weight
  • Approx. 500g

LMFS Frequency Sweep Level Switch

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPST
  • Color
  • Silver
  • Contact Resistance
  • 50m
  • Current Rating
  • 1A
  • Finish Type
  • Polished
  • Insulation Resistance
  • 100M (at 500VDC)
  • Material
  • Stainless Steel
  • Max. Current
  • 1A
  • Max. Voltage
  • 250V AC/DC
  • Mechanical Life
  • >1 million operations
  • Mounting Type
  • Threaded (G1/G1.5)
  • No Of Poles
  • 1
  • Number of Module
  • Single
  • Operating Temperature
  • -30C to +80C
  • Product Type
  • LMFS Frequency Sweep Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 220V AC
  • Response Time
  • 1 sec
  • Size
  • 40mm diameter probe
  • Temperature Range
  • -30C to +80C
  • Weight
  • Approx. 350g

LMC14 Compact Capacitance Level Switch

MOQ : 10 Pieces

  • Automation Grade
  • Automatic
  • Circuit Type
  • SPST
  • Color
  • Silver
  • Contact Resistance
  • 100 m
  • Current Rating
  • 5A
  • Finish Type
  • Polished
  • Insulation Resistance
  • 100 M @ 500 V DC
  • Material
  • SS 304 / SS 316
  • Max. Current
  • 5A
  • Max. Voltage
  • 240 VAC
  • Mechanical Life
  • > 1 million operations
  • Mounting Type
  • Screw type / Threaded (Standard 1 BSP/NPT)
  • No Of Poles
  • Single Pole
  • Number of Module
  • Single
  • Operating Temperature
  • -20C to +70C
  • Product Type
  • Compact Capacitance Level Switch
  • Protection Level
  • IP65
  • Rated Voltage
  • 240 VAC
  • Response Time
  • 1 Sec
  • Size
  • Probe length: 100 mm (customizable)
  • Temperature Range
  • -20C to +70C
  • Weight
  • Approx. 350 g
